Female hinge MP2 with pin ø32
Female hinge MP2 with pin ø32
36.88$
Code:
26.001.2N
Part number:
CFIS032
Weight:
3.63 oz
Stock:
0
Amount:
Add to Cart
Documents
Description

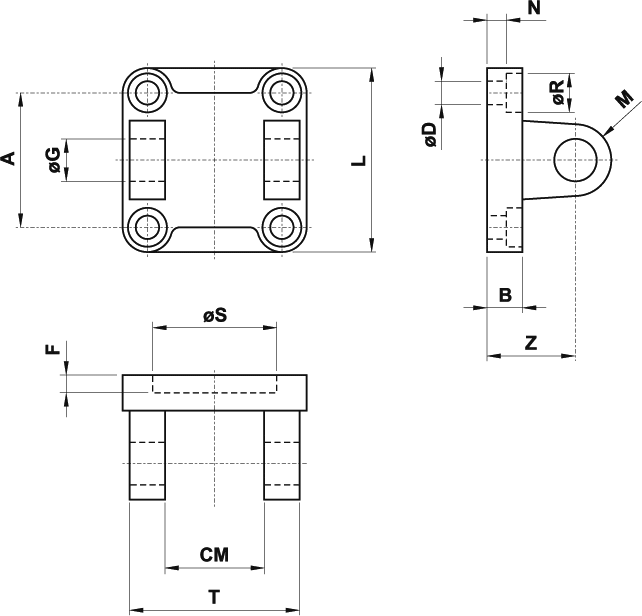

sigla
standard
per alesaggio
A
B
CM
D
F
G
L
M
N
R
S
T
Z
CFIS032
32
32.5
9
26
6.6
5
10
45
10
5.5
11
30
45
22
pdf
dwg
stp
acs
