Intermediate trunnion ø80
Intermediate trunnion ø80
261.94$
Code:
26.092.2N
Part number:
CIN080
Weight:
19.51 oz
Stock:
0
Amount:
Add to Cart
Documents
Description

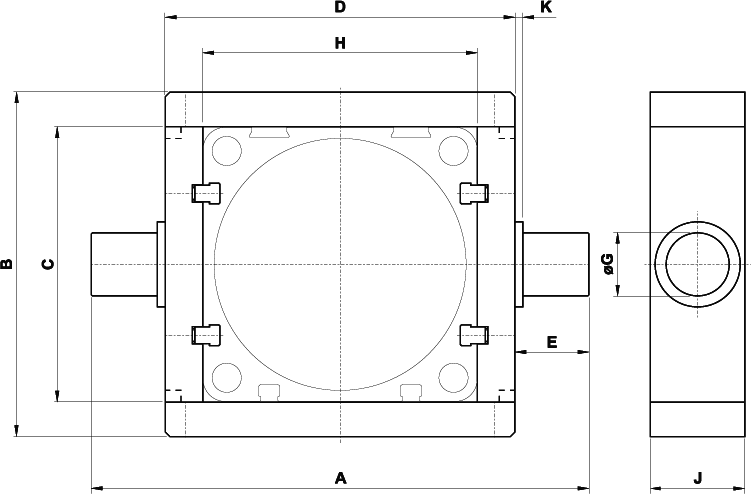

sigla
per alesaggio
A
B
C
D
E
G
H
J
K
CIN080
80
156
109.3
87.5
111
22.5
20
87
30
2.5
pdf
dwg
stp
acs
