Male hinge MP4 ø32
Male hinge MP4 ø32
34.99$
Code:
26.019.2N
Part number:
CMIS032
Weight:
2.68 oz
Stock:
0
Amount:
Add to Cart
Documents
Description

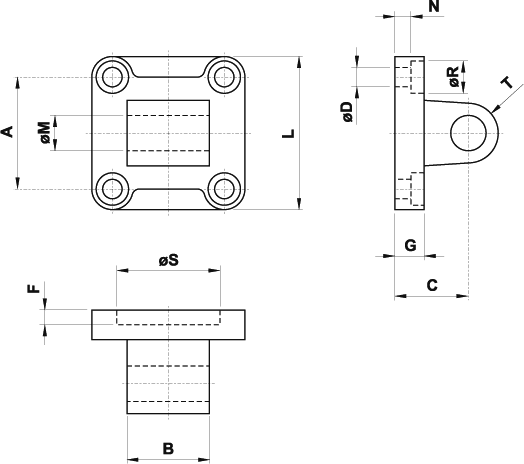

sigla
standard
per alesaggio
A
B
C
D
F
G
L
M
N
R
S
T
CMIS032
32
32.5
26
22
6.6
5
9
45
10
5.5
11
30
10
pdf
dwg
stp
acs
